The foundry-proven MEMS design flow delivers design, 3D modeling, and fabrication support in one unified environment. The same flow makes it easy to integrate MEMS devices and analog/mixed-signal circuitry. L-Edit is the gold standard for layout implementation with its MEMS specific capabilities.
L-Edit has all of the functionality that is needed to implement today’s MEMS designs. L-Edit's native curve representations along with the capability to define complex Boolean operations coupled with the creation and use parameterized cells enables the easy and quick layout of your MEMS device.
Product
all
Tanner L-Edit MEMS

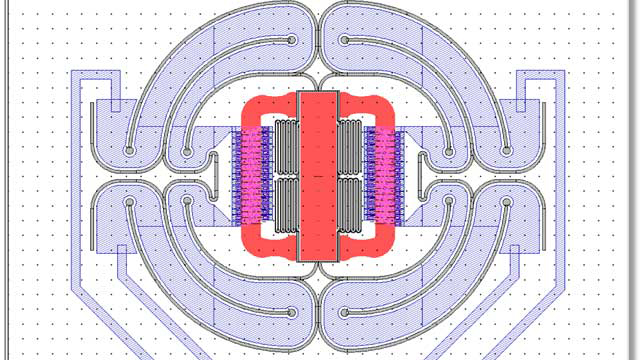

L-Edit MEMS – Physical layout of the MEMS devices in an IC layout editor
Product
all
MEMS Pro3D Solid Modeler

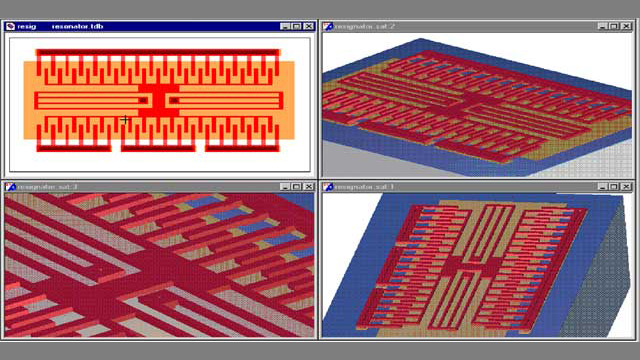

MEMS Pro – converts the 2-D layout from L-Edit MEMS to a foundry specific 3-D simulation model
